How to paste wind coefficients

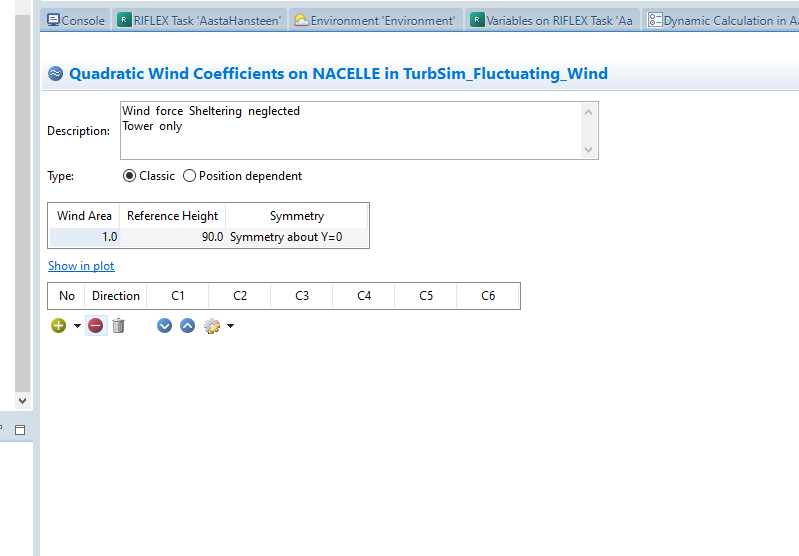

  • Click on the body

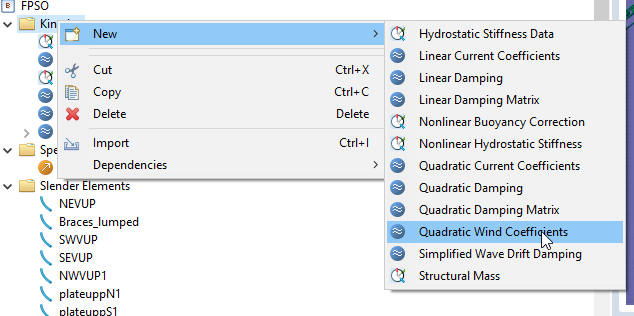

  • Choose Quadratic wind Coefficients

6130628 image13
943931857 image14

1. Example: paste from clipboard

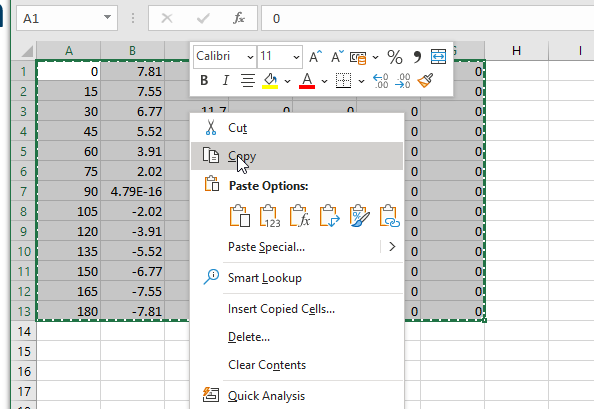

  • In example Excel

  • Choose the cell you want to paste in

101409754 image15

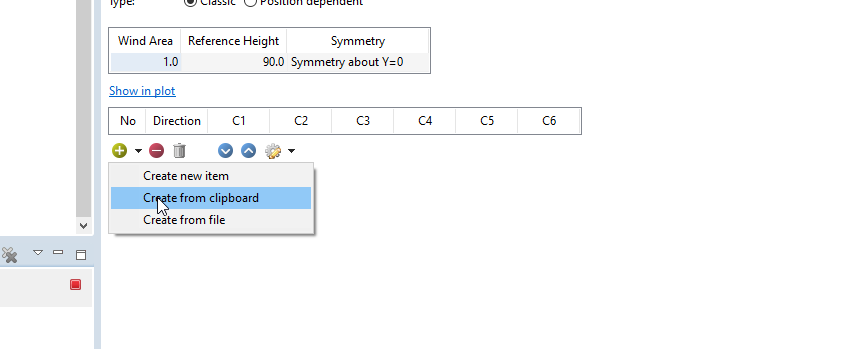

2. In SIMA

563918725 image16

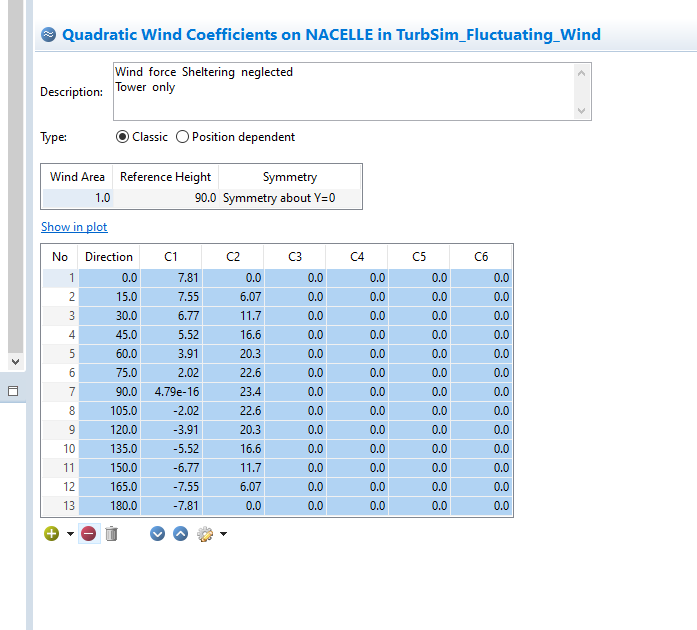

3. Quadratic wind coefficients

1326536673 image17

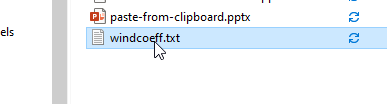

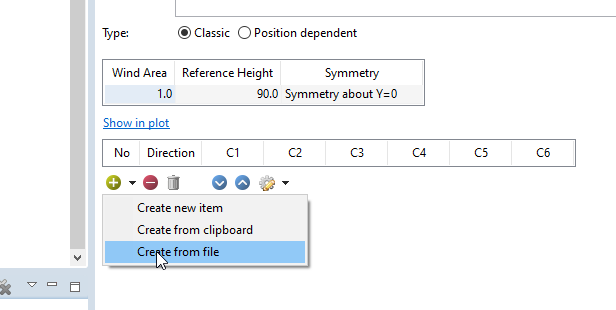

4. Example: From file

205421530 image18
2033848152 image19

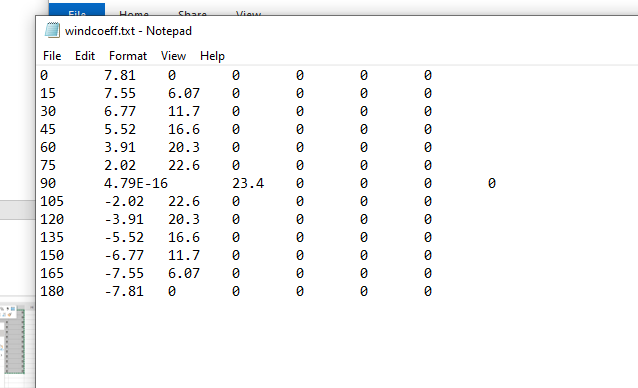

5. File with wind coefficients

590432743 image20
  • SIMA accepts both tabs and spaces

205421530 image18
2033848152 image19

6. Quadratic wind coefficients

1326536673 image17
