How to yaw a wind turbine in modelled configuration using a reference frame

1. Add reference frame

332079568 image13

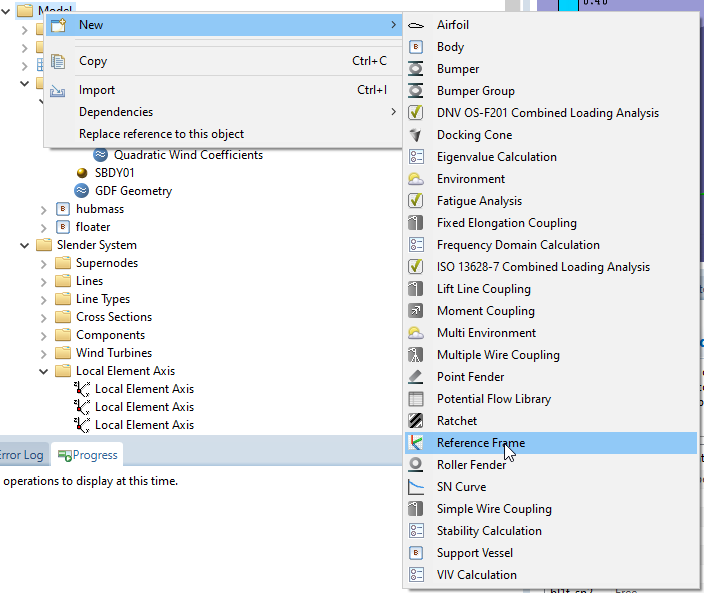

  • Right click on model, new → Reference Frame

  • Name the reference frame Nacelle

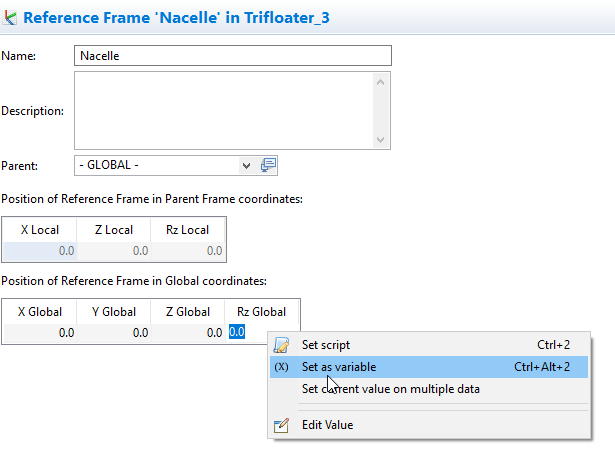

  • Set the Rz Global value to variable

  • Name the variable yawAngle

1369150446 image14
273566433 image15

2. Supernodes

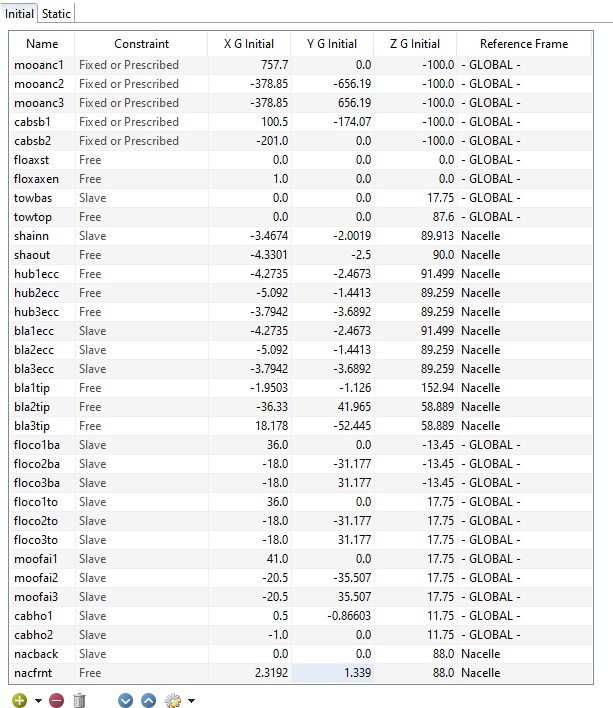

  • Change the reference system for the super nodes above the tower.

  • Make a nacelle line to attach the Nacelle body to if attached to tower

2122374703 image16

3. Bodies

  • Change the position of the bodies according to the yawAngle.

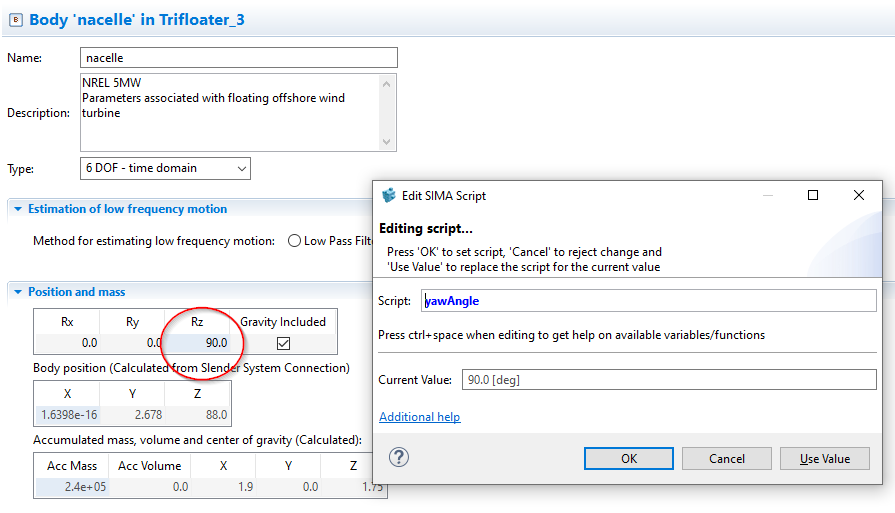

    • Right click on Rz→set Script

1427141076 image17
